Universal TK102B Personal Vehicle GSM GPS Tracker Pet Tracker Vehicle tracker

Name: Universal TK102B Personal Vehicle GSM GPS Tracker Pet Tracker Vehicle tracker
Brand: Everising
Price: 1 USD

China Universal TK102B Personal Vehicle GSM GPS Tracker Pet Tracker Vehicle tracker factory

Place of Origin : China

Brand Name : Everising

Certification : CE

Model Number : TK-102B

MOQ : 100PCS

Price : USD

Packaging Details : 1pc/packing

Delivery Time : 20 days

Payment Terms : By T/T

Supply Ability : 10000pcs/M

Type : Gps Tracker

Use : personal

Screen Size : none

Function : tracker

Contact Now

Universal TK102B Personal Vehicle GSM GPS Tracker Pet Tracker Vehicle tracker

This product is based on GSM/GPS network and GPS satellite positioning system, through the short message or contact each other the remote target location or monitor.

1.Proper insert GSM card and install battery

2.Press turn on button for 4 seconds, device will flash at 2 seconds, put device outside.

3.Around 50seconds, dialing device number, it will hang up and reply tracking message with valid Long and lat stands for device can work normal.

4.If need track online system, send 2 SMS connects to platform as below:

SMS 1: #IP#123456#116.205.4.114#8169#

SMS2: #apn#123456#APN of operator#APN user name#APN password#

5.Login platform to track in real time(please check Platform user manual in CD).

Content	Specification
Dim.	64mm x 46mm x 17mm
Weight	50g
Network	GSM/GPRS
Band	850/900/1800/1900Mhz
GPS chip	MT3336
GPS sensitivity	-159dBm
GPS accuracy	10m
Time To First Fix	Cold status 45s-90s
	Warm status 50s
	Hot status 15s
Car charger(optional)	12-24V input
Car charger(optional)	5V output
Wall charger	110-220V input
Battery charger	5V output
Battery	Chargeable changeable 3.7V 650mAh Li-ion battery
Storage Temp.	-40C to +85C
Operation Temp.	-20C to +45C
Humidity	15%-95% non-condensing

Universal TK102B Personal Vehicle GSM GPS Tracker Pet Tracker Vehicle tracker

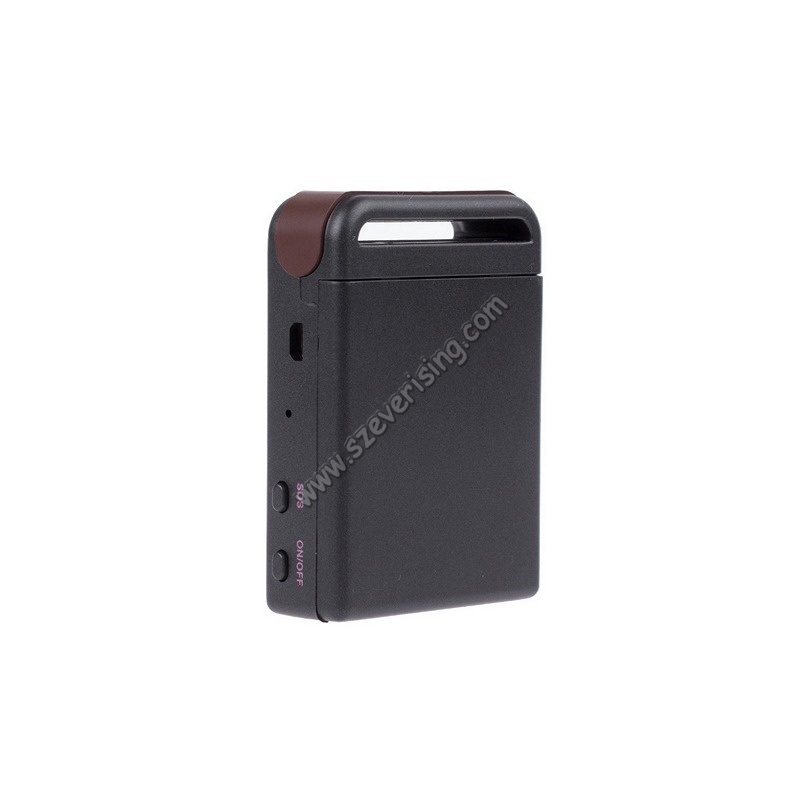

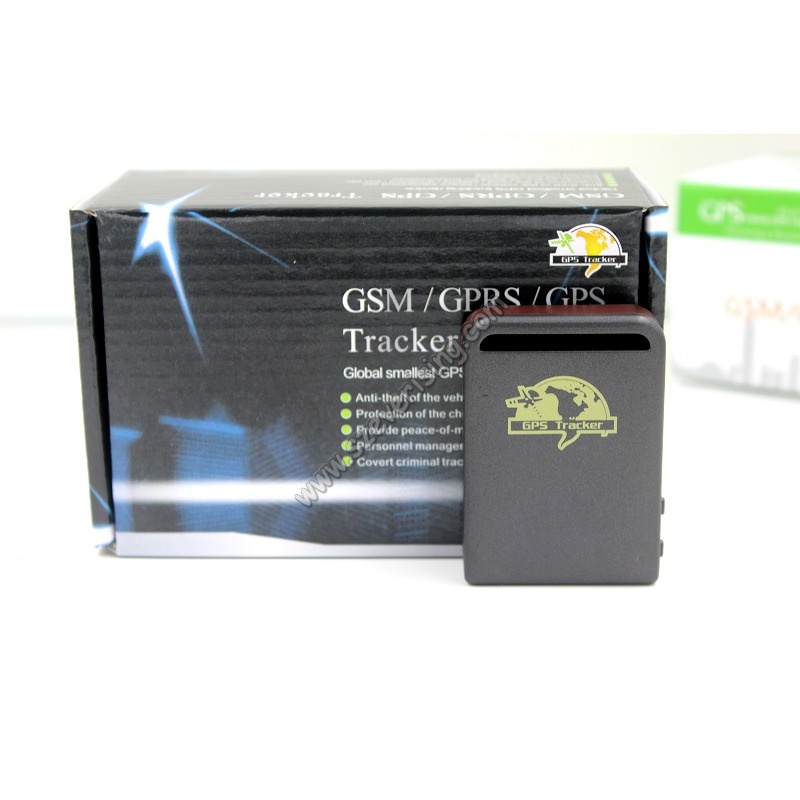

Universal TK102B Personal Vehicle GSM GPS Tracker Pet Tracker Vehicle tracker Images
